Brand Name : XR
Model Number : XR-36C-12
Certification : CE
Place of Origin : China
MOQ : 50PCS
Price : US$2.5-3.5
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 20000PCS per day
Delivery Time : 2-7 Days
Packaging Details : 4PCS/Inner box, 144PCS/CTN
Output current : 3A
Output type : Single
Output voltage : 12V
Output frequency : 50/60Hz
Input voltage : 200-240Vac
Output power : 36W
Warranty : 2 Years
Size : 271*18*18.5mm
Material : Aluminum Housing
IP level : IP43 for indoor
OEM : Yes
Protection : Over-load, over-voltage, over-current, short-circuit
Product Specification:
LED Slim Power Supply DC 12V 36W 48W Indoor Ultra Slim Power Supply for LED lighting Box
1). Sepcifications
Model | Size/mm | Input | Output | Output Current | Warranty |
XR-36C-12 | 271*18*18.5 | AC 200~240V | DC 12V | 3A | 2 Years |
XR-36C-24 | 271*18*18.5 | AC 200~240V | DC 12V | 1.5A | 2 Years |
XR-48C-12 | 271*18*18.5 | AC 200~240V | DC 12V | 4A | 2 Years |
XR-48C-24 | 271*18*18.5 | AC 200~240V | DC 24V | 2A | 2 Years |
2).Input Characteristics
3) Output Characteristics
1. Output Power
Voltage | Min. Load | Rated Load | Peak@10mS | Rated Output Power |
DC 12V | 0A | 3A | 43W | 36W |
2. Line Regulation
Voltage | Min. Load | Rated Load | Line Regulation | Load Regulation |
DC 12V | 0A | 3A | ±3% | ±5% |
3. Ripple and Noise
Under nominal voltage and nominal load,the ripple and noise are as follows when
measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.
Voltage | Ripple and Noise(Max.) |
12V DC | 200mV p-p |
4. Turn on delay time: 2Second Max.at 220Vac input and output Max.load.
5.Rise time:400 mS Max.at 220Vac input and output Max load.
6. Efficiency: 84%Min, At220Vac input voltage and full load calculation efficiency.
7. Overshoot: 10% Max.When power supply at turn or turn off.
4) Protection Functions:
1. Short circuit protection: auto recovered when short circuit faults remove.
2. Over Voltage Protection: lock when over voltage, must close and restart AC Source.
3. Over load protection: auto recovered when over current faults remove.
5) Test: Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.
6) Safety Requirement
1. Safety Standard: Safety: Design by IEC60950 standard.
2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
Secondary to case:300Vac/10mA/60S for type test.
3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.
7) EMI Requirement
Designed according to the following standards:
1. FCC class B rules
2. EN55022 class B rules
3. GB9254-1998,GB17625.1-2003

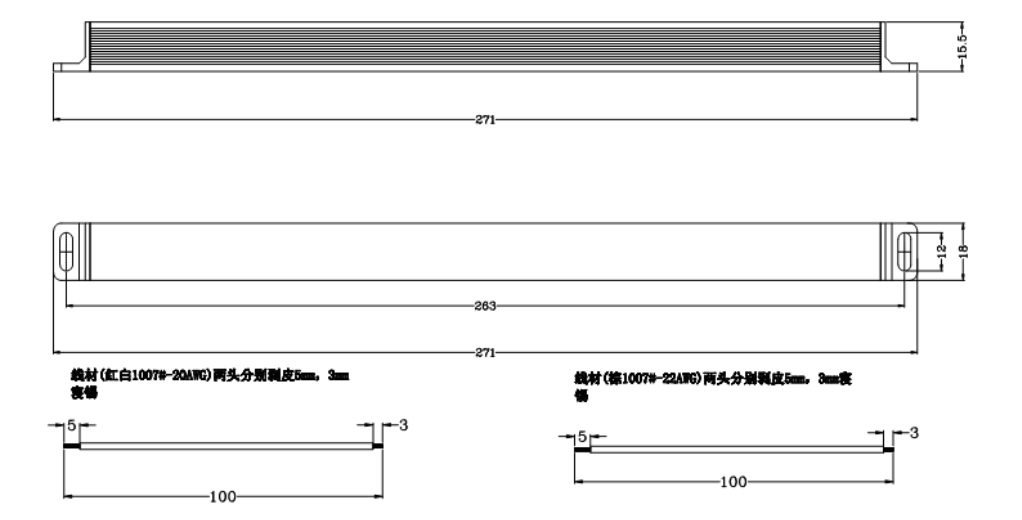

8) Structurer:
9) OEM: Customize label and Inner box
10) Packing details
11) More products:
XR Indoor Lightbox Ultra Slim Power Supply List (IP43, 2 years warranty) | ||||||
Model Name | Output DC Power | Size(mm) | MOQ/Packing | Carton Size(mm) | G.W/ctn | Input AC Power |
XR-18C-12 | 18W 12V 1.5A | 180.5*18*18 | 156pcs/carton | 380*250*283 | 17kg | 200~240V,50/60hz |
XR-24C-12 | 24W 12V 2A | 180.5*18*18 | 156pcs/carton | 380*250*283 | 17 | 200~240V,50/60hz |
XR-36C-12 | 36W 12V 3A | 271*18*15.5 | 144pcs/carton | 350*330*305 | 21 | 200~240V,50/60hz |
XR-48C-12 | 48W 12V 4A | 271*18*15.5 | 144pcs/carton | 350*330*305 | 21 | 200~240V,50/60hz |
XR-60CL-12 | 60W 12V 5A | 293*18*15.5 | 96pcs/carton | 380*250*283 | 10 | 200~240V,50/60hz |
Factory Capacibility:
1. Professional manufacturer: 17 Years experience, 10,000 square meters factory,
400+ employees, 8 production lines
2. Scientific Management: ISO9001:2015 Quality Management System Certified, 7S administration
3. Independent R&D teams : 10+ Engineer teams, innovative and independent R&D ability
4. Advanced equipment: SMT plant, wave-soldering machine, Semi-auto assembling,
EMC lab, Test Lab, Ageing room etc.
![]() |
LED Slim Power Supply DC 12V 36W 48W Indoor Ultra Slim Power Supply for LED lighting Box Images |
