Product Specification:
IP65 Rainproof silica sealed 12V 33A LED sign power supply 400W with no fan for LED lighting and LED Sign
Highlights: Resin semi potted interior with better protection from server weather, like hot/humid/dusty/corrosive coastal weather.
1). Basic Sepcifications
| Model | Size/mm | Input | Output | Output Current | Warranty |
| HXF-400C-12 | 216.5*117.5*51 | AC 180~264V | DC 12V | 33.3A | 3 Years |
| HXF-400C-24 | 216.5*117.5*51 | AC 180~264V | DC 24V | 16.7A | 3 Years |
2). Electrical Specification
| Model | HXF-200GC | HXF-300GC | HXF-400GC | HXF-400C |
| 12V | 24V | 12V | 12V | 24V | 12V | 24V |
| Output | DC Voltage | 12V | 24V | 12V | 12V | 24V | 12V | 24V |
| Current Range | 0-15A | 0-7.5A | 0-25A | 0-29A | 0-15A | 0-29A | 0-15A |
| Ripper and Noise | 60mVp-p | 110mVp-p | 60mVp-p | 100mVp-p | 150mVp-p | 100mVp-p | 150mVp-p |
| Voltage Adjust | | | | 9.5V-12.5V | 16V-30V | | 21V-25V |
| Volt. Accuracy | 5V±5% 12V±5% 24V±3% 48V±3% |
| Linear regulation | ±0.3% | Start/Rise time | 2000ms,80ms/240VAC |
| Load regulation | ±0.5% | Hold timeTyp | 10ms/240VAC |
| Input | AC Voltage range | 180～264VAC | Frequency | 50~60Hz |
| PC Factor Typ | | | | | | | |
| Efficiency Typ | ≥86% | ≥86% | ≥86% | ≥86.8% | ≥88.8% | ≥89% | ≥90.9% |
| AC Current | 180VAC | 2.5A | 2.5A | 3.5A | 3.8A | 3.8A | 3.8A | 3.8A |
| 240VAC | 2A | 2A | 3A | 2.8A | 2.8A | 2.8A | 2.8A |
| Inrush Current | Cold start 45A/240V AC Warm start 50A/240 AC |
| Leakage Current | <0.75mA/240VAC |
| Protection | Over-load | 110%-130% of rated power |
| Short circuit | Protection mode: auto recovery after short circuit faults removed |
| Over-voltage | <15V | <29V | <15V | <15V | <29V | <15V | <29V |
| Protection mode: shot off output voltage, restart to recovery |
| Environment | Work Temp. | '-25~40℃ |
| Work Humidity | 20%-90% RH no condensation |
| Storage Temp. | '-25~80℃ |
| Vibration resist. | revolution 280±10%, 45 mins,X.Y.Z three directions |
| Drop test | 800mm |
| Surge | Common mode 4KV, different mode 2KV |
| Safety/EMI | Safety standard | Design by standard:GB4943-2001, UL1012 |
| Withstand volt. | I/P-O/P 2KVAC I/P-FG 2KVAC O/P-FG 500VAC |
| Insulation resist. | I/P-O/P .I/P-FG .O/P-FG: ＞100MΩ/500VDC/25℃/70%RH |
| EMC | Design by standard: EN55022B, Class B |
| Harmonic current | Design by standard:GB17625.1; EN61000-3-2, -3 limitation requirement. |
| Immunity | Design by standard: EN55024; EN61000-4-2,3,4,5,6,8,11 |
| Others | MTBF | ≥30000 hours 40℃ |
| Product size | 185.3*93.4*50mm | 185.3*93.4*50.5mm | 193*109.5*51.5mm | 216.5*117.5*51mm |
| Net Weight | 556g | 614.8g | 689g | 885g |
| Packing(pcs/ctn) | 32PCS | 32PCS | 24PCS | 18PCS |
3). Load and Environment Temperature

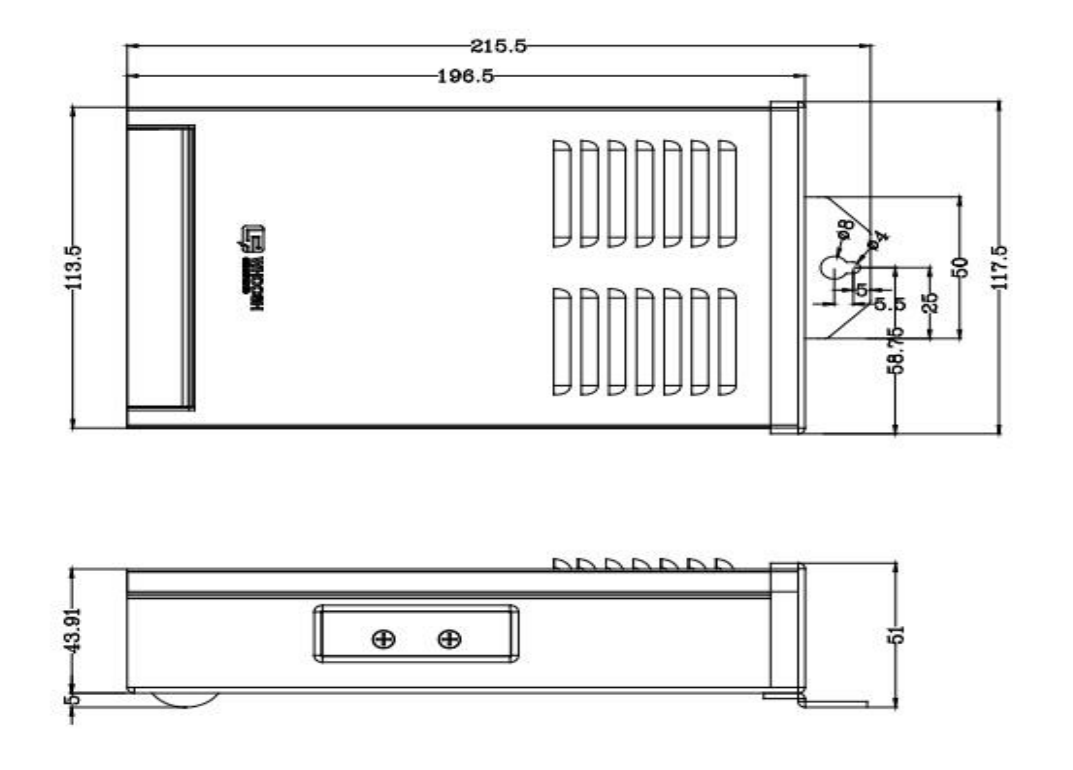

3) Structurer:
4) OEM: Customize label and Inner box

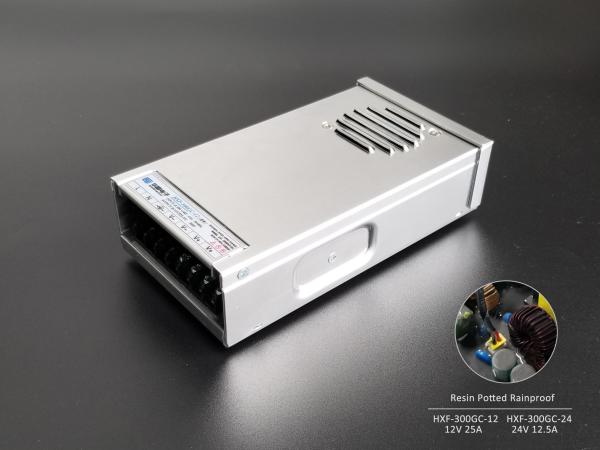

11) More product pictures:
Factory Capacibility:
1. Professional manufacturer: 17 Years experience, 10,000 square meters factory,
400+ employees, 8 production lines
2. Scientific Management: ISO9001:2015 Quality Management System Certified, 7S administration
3. Independent R&D teams : 10+ Engineer teams, innovative and independent R&D ability
4. Advanced equipment: SMT plant, wave-soldering machine, Semi-auto assembling,
EMC lab, Test Lab, Ageing room etc.
